Truck and Trailer Test Accessories
Available from Lite-Check LLC
LITE-CHECK offers a variety of accessories and add-on equipment to support the test, inspection, and certification of trailers, busses, tractors, and straight trucks.
Please visit LITE-CHECK's website at http://www.lite-check.com for complete details.
One of the most interesting and useful accessories available for any of LITE-CHECK'S air enabled testers is the brake and clutch pedal actuator, designed and built by LITE-CHECK this unique product is an essential addition to any shop inspecting and servicing truck and trailer combinations.
TRUCK KIT - Brake and Clutch Pedal Actuator

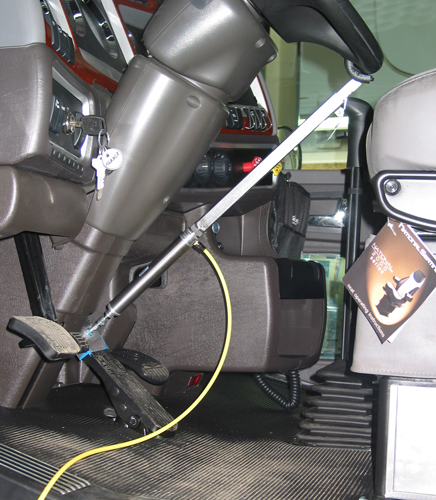

The LITE-CHECK 330A & 330B Brake & Clutch Pedal Actuators that make up the LITE-CHECK Truck Kit allow you to operate service brake or clutch pedals using the remote control or control panel of any air enabled LITE-CHECK tester. Simply place the actuator pad on the brake or clutch pedal and ratchet the hook extension to engage the steering wheel. Insert the airline connector to the Service Air output on the front of a LITE-CHECK tester. Now, energize the pedal actuator by pressing the brake button on the remote control, or directly from the tester's control panel.
With the LITE-CHECK Truck Kit, brake and clutch inspections become one person operations on busses, tractors, straight trucks, and combinations.
Model 330A: The 330A, utilizes a precision pneumatic cylinder with a 1" bore, and produces approximately 70 pounds of application force at the standard 85 to 90 psi Service Air pressure.
