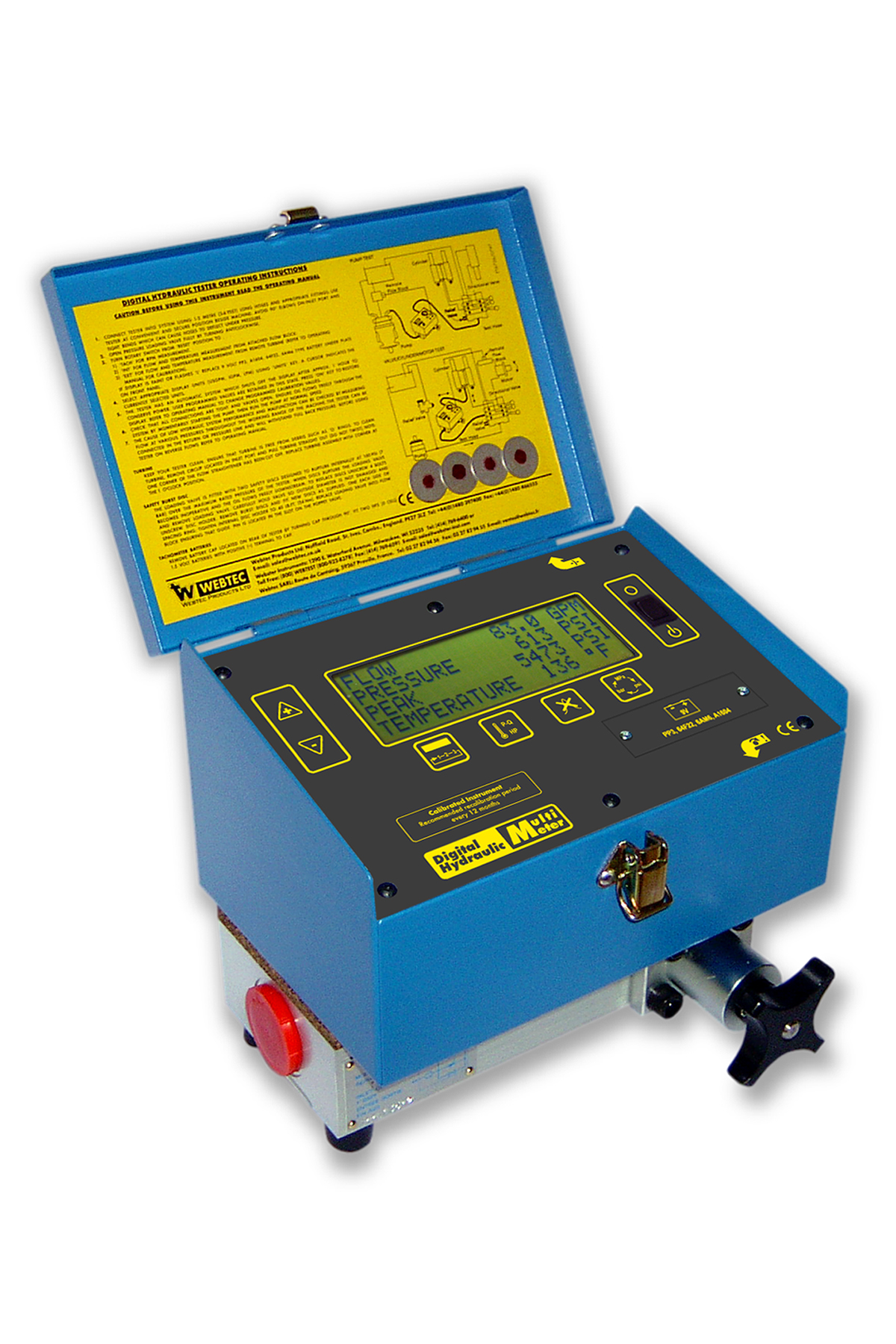

Digital Hydraulic Multimeter
Available from Webster Instruments
The DHM 3 Series Digital Hydraulic Multimeter is an all-in-one unit designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions up to 200 gpm & 6000 psi.
The easy-to-use design allows the operator to just switch
on and test, without complex setup. The DHM measures flow, pressure and temperature. In addition, the DHM holds the peak pressure value as well as calculating hydraulic power and volumetric efficiency using the unique P-Q test button.
The DHM is the ideal tool for pinpointing hydraulic system faults, reducing downtime, and helping in preventative maintenance. The design builds on the very successful DHT
range of portable testers with the addition of a large digital display and a built-in pressure transducer.
The turbine flow meter with built-in loading valve is bi-directional and specifically designed to enable the operator to simulate the maximum working pressure safely during normal machine operation.
The loading valve has safety discs built-in to protect the operator and the multimeter in the event of excessive pressure, allowing oil to bypass the loading valve INTERNALLY with no spillage of oil from the hydraulic circuit, eliminating any danger to the operator or environmental hazards.
