Opti-Brite™ LED Dome Light Models ILL42/43CB
Available from Optronics International

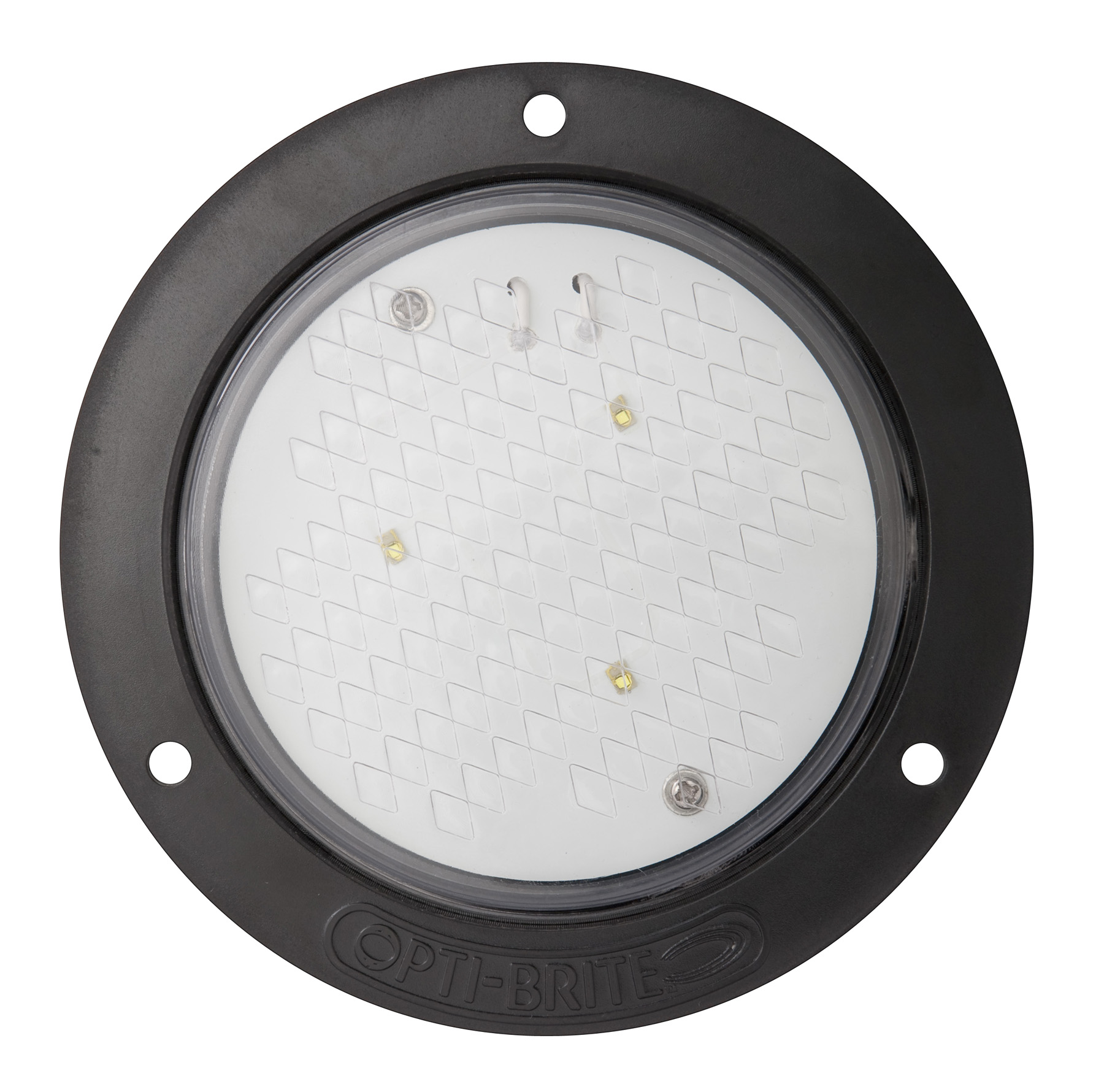

Model ILL42CB is ultrabright, flange mount LED dome light designed for use in heavy duty applications. Three-diode design provides bright light output while conserving power. Diodes produce little heat and last up to 100,000 hours-no bulbs to replace. Corrosion proof, polycarbonate housing and lens. Operating voltage 11-14VDC (low voltage cut-off 10.5-11.0VDC). Hard wired design includes both lead and ground wires for mounting to all surfaces. Also available in grommet mount version, model ILL43CB.
Model ILL42CB - Flange Mount
Model ILL43CB - Grommet Mount
Amp draw: 0.582A at 12VDC
Raw lumen output: 525 lm
Effective lumen output: 472 lm
