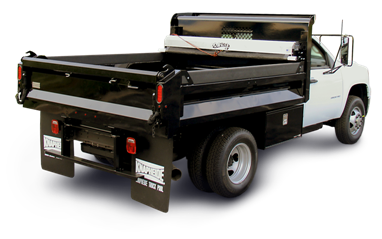

Dump Bodies

Product Details

- Available in Drop Side or Fixed Side models
- Quarter cab protectors available in straight or tapered versions or full cab protector available in straight version
- Sides and tailgate feature self-cleaning sloped top rails and lower rails
- Sides are constructed of 10 gauge high tensile steel
- 2x6 side board pockets at the front and rear on the sides allow for increased load capacity
- Versatile double acting tailgate accommodates both drop down pick-up style and spreader applications
- Quick release, one-handed lever for easy drop down action on the tailgate
- Toe saver brackets located on both sides of the end rail for operator safety
- Rear corner posts equipped with a hook on each side for an optional tarp
- Double panel tailgate construction with 12 gauge HY50 outer panel and 10 gauge HY50 inner panel
- Fully boxed long sills are constructed of 7 gauge HRCQ steel and run the entire length of the floor
- Floor is constructed of two pieces of 7 gauge HRCQ steel and is full seam welded in the center
- Understructure is crossmemberless
- One hand pull release handle on the drop down sides for convenient and smooth drop down operation, drop down sides hinge 180 degrees for hassle free loading and unloading (Drop Down models only)
- Complete immersion in Knapheide's electrodeposition prime paint system for superior corrosion resistance
- Water based undercoat for additional corrosion protection
