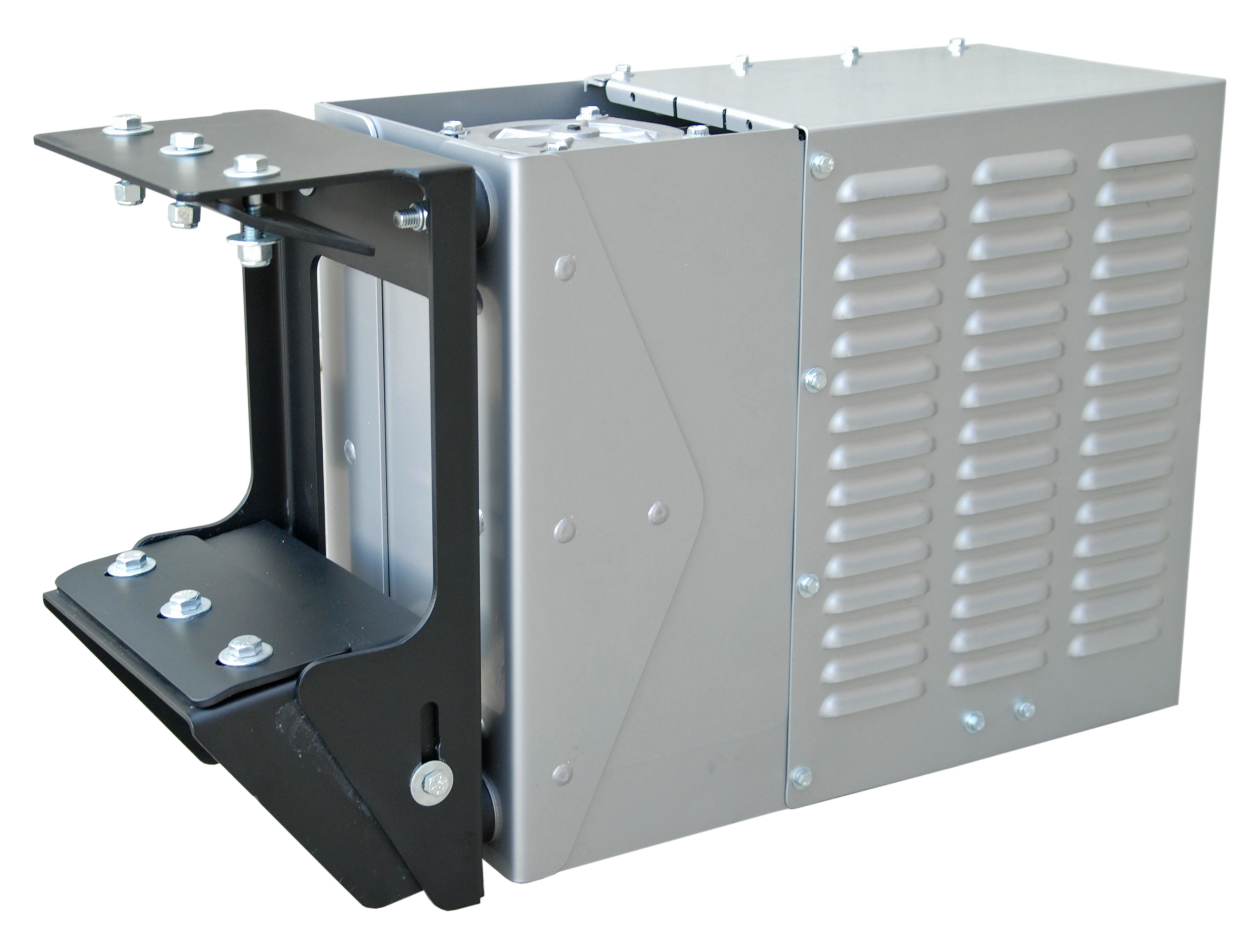

SL-30 Slimline Cooler

Product Details

Great Sidemount Solution:
Our Slimline Cooler Kit is a compact hydraulic reservoir, filter and cooler system. This kit is designed to cool and filter the oil required to operate your hydraulic system. When space is limited behind the cab, our Slimline Cooler is a great solution with it's sidemount off the frame design. All our truck product kits are pre-engineered and are made ready to instal on your hydraulic system.

Standard Features:
• Materials:
• Reservoir: 30 gallon capacity Powder Coated Carbon Steel
• Filter: 10 Micron Cartridge Filter
• Filler Breather: 10 Micron Filler Breather w/ 4.5 PSI VAC/pressure relief and fill screen
• Porting: SAE O-Ring w/ Ball Valve Suction Port
• -24 SAE O-Ring Filtered Return Port
• 1-1/2" NPT Direct to Tank Return Ports (Auxiliary)
• 2" Full Coupling Suction Port
• Relief Valve and Ball Valve NOT INCLUDED
• Gauge: Sight Level/Temp. Gauge
• Optional No Drill Quick Mount:
• Powder Coated Steel w/ vibration isolation mounts and adjustable for 33.5" to 34.5" frames
• Weight: Approx 200 lbs. (will vary depending on options)
• Dimensions: Approx. 33.75"W x 32"H x 13"D
