High Quality, High Duty:

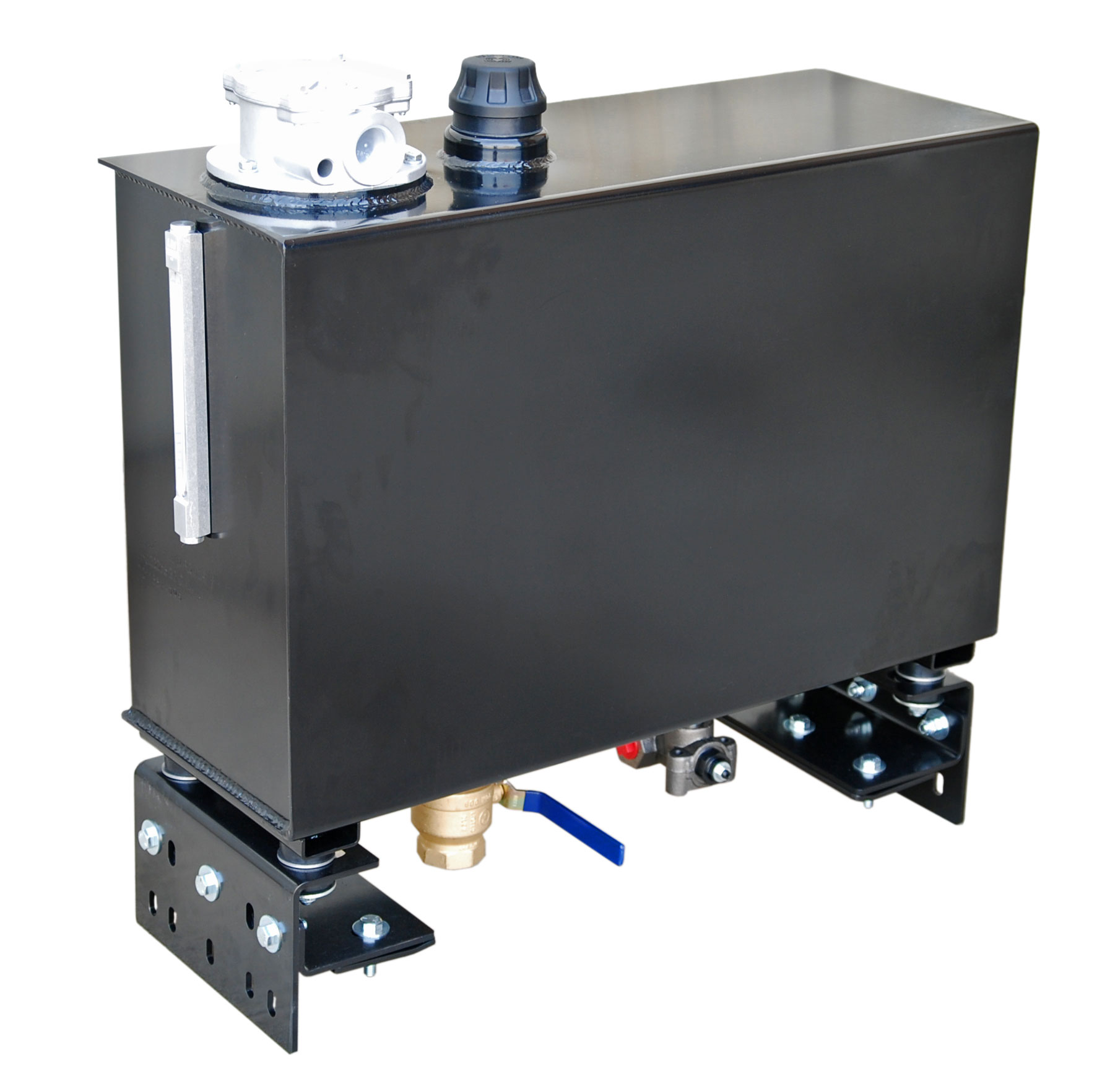

Our Universal Truck Tank Kit is a heavy duty compact hydraulic reservoir. With a no drill quick mount frame that fits any truck chassis on the market, the heavy duty carbon steel design and quality construction make this unit perfect for the most severe applications. We also offer optional bolt on valve brackets. Ask your sales representative for more details.
• Reservoir: 30 gallon capacity Powder Coated Carbon Steel
• Filter: 1 Micron Cartridge Filter
• Filler Breather: 10 Micron Filler Breather w/ 4.5 PSI VAC/pressure relief and fill screen
• Porting: SAE O-Ring w/ Ball Valve Suction Port
• -24 SAE O-Ring Filtered Return Port
• 1-1/2" NPT Direct to Tank Auxiliary Return Ports
• 2" Full Coupling Suction Port
• Relief Valve and Ball Valve NOT INCLUDED
• Gauge: Sight Level/Temp. Gauge
• No Drill Quick Mount:
• Powder Coated Steel w/ vibration isolation mounts and adjustable for 33.5" to 24.5" frames
• Weight: Approx. 200 Lbs (will vary depending on options)
• Dimensions: Approx. 33.75"W x 32"H x 13"D
